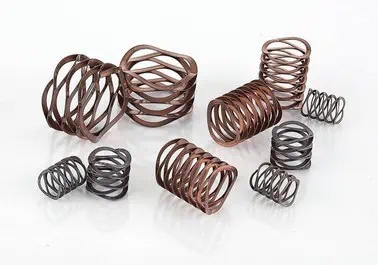

Designed to fill load and spacial needs in the range between traditional Disc Springs and coiled compression springs, Poly Wave Springs offer loads of up to 25 lbs. with a free height of less than one inch. Poly Wave Springs are made from round edged flat wire that has been pre-tempered. Made from Type 17-7 PH Stainless Steel flat wire, these springs may be used in high heat environments, performing well at up to 650°F.
| Part Number | Fits in Hole Size | Fits Over Rod Size | Thickness (in) | Length | Material |
|---|---|---|---|---|---|
| PWC0375-0150-04-S | 0.375 | 0.25 | 0.008 | 0.150 | 17-7 Stainless |
| PWC0375-0150-07-S | 0.375 | 0.25 | 0.011 | 0.150 | 17-7 Stainless |
| PWC0375-0250-04-S | 0.375 | 0.25 | 0.008 | 0.250 | 17-7 Stainless |
| PWC0375-0250-07-S | 0.375 | 0.25 | 0.011 | 0.250 | 17-7 Stainless |
| PWC0375-0350-04-S | 0.375 | 0.25 | 0.008 | 0.350 | 17-7 Stainless |
| PWC0375-0350-07-S | 0.375 | 0.25 | 0.011 | 0.350 | 17-7 Stainless |
| PWC0375-0450-04-S | 0.375 | 0.25 | 0.008 | 0.450 | 17-7 Stainless |
| PWC0375-0450-07-S | 0.375 | 0.25 | 0.011 | 0.450 | 17-7 Stainless |
| PWC0437-0165-04-S | 0.437 | 0.281 | 0.008 | 0.165 | 17-7 Stainless |
| PWC0437-0165-08-S | 0.437 | 0.281 | 0.011 | 0.165 | 17-7 Stainless |
| Part Number | Fits in Hole Size | Fits Over Rod Size | Thickness | Length | Material |
|---|---|---|---|---|---|
| PWC0375-0150-04-S | 9.53 | 6.35 | 0.20 | 3.81 | 17-7 Stainless |
| PWC0375-0150-07-S | 9.53 | 6.35 | 0.28 | 3.81 | 17-7 Stainless |
| PWC0375-0250-04-S | 9.53 | 6.35 | 0.20 | 6.35 | 17-7 Stainless |
| PWC0375-0250-07-S | 9.53 | 6.35 | 0.28 | 6.35 | 17-7 Stainless |
| PWC0375-0350-04-S | 9.53 | 6.35 | 0.20 | 8.89 | 17-7 Stainless |
| PWC0375-0350-07-S | 9.53 | 6.35 | 0.28 | 8.89 | 17-7 Stainless |
| PWC0375-0450-04-S | 9.53 | 6.35 | 0.20 | 11.43 | 17-7 Stainless |
| PWC0375-0450-07-S | 9.53 | 6.35 | 0.28 | 11.43 | 17-7 Stainless |
| PWC0437-0165-04-S | 11.10 | 7.14 | 0.20 | 4.19 | 17-7 Stainless |
| PWC0437-0165-08-S | 11.10 | 7.14 | 0.28 | 4.19 | 17-7 Stainless |
